Drone LiDAR for Watershed Development: The Complete Guide

March 11, 2026

Aerial drone view of a mountainous watershed with converging creek channels, overlaid with LiDAR elevation heatmap gradient from blue valleys to orange ridgelines

Every structure in a watershed plan — every check dam, retention basin, channel improvement, contour terrace — is a bet on how water moves across the land. Get the terrain wrong and the bet loses. This guide is for watershed professionals who need to understand drone LiDAR as a terrain data source: what it produces, how accurate it gets, when it beats existing free national data, and how to plug it into the standard hydrologic and hydraulic modeling workflows.

Start with what you already have for free

Before paying for any new acquisition, check coverage in the USGS 3D Elevation Program (3DEP). The program is a coordinated national LiDAR collection effort, and as of fiscal year 2024 it has achieved 98.3% national coverage with QL2-or-better data available or in progress.

Coverage is downloadable directly from the USGS Lidar Explorer and the National Map Viewer. For many watershed planning projects, the 3DEP point cloud or derived bare-earth DEM is sufficient on its own — and free.

Where 3DEP falls short and a project-specific drone LiDAR acquisition makes sense:

Coverage is older than ~5 years in a watershed where significant grading, development, or channel changes have occurred since.
You need point density above QL2's 2 pts/m² floor — typically the case for dense urban drainage, micro-topography studies, or canopy-penetration assessments. Drone LiDAR routinely delivers 100–400+ pts/m².
You need vertical accuracy tighter than QL2's 10 cm RMSEz — for example, when a model is sensitive to sub-decimeter grade breaks across a flat catchment.
You need turnaround in days rather than waiting for the next 3DEP collection cycle (which can be years).

How drone LiDAR actually works

LiDAR is an active sensor that fires laser pulses at the ground and times the return. Combined with the drone's GNSS position and inertial orientation, each pulse becomes a measured XYZ point — millions of them per flight.

Critically, LiDAR captures multiple returns per pulse. One pulse can hit the top of a tree canopy, partially reflect, then hit a branch, then hit the bare ground beneath — and the sensor records all three returns. The DJI Zenmuse L2 sensor we operate produces up to 240,000 points per second in single-return mode and 1,200,000 points per second across all returns. The multi-return capability is what lets LiDAR see through vegetation to the bare-earth surface, which is the input that hydrologic models actually need.

Photogrammetry — the alternative for drone-based terrain capture — only sees what the camera sees: the canopy top. For any watershed work in vegetated terrain, that's a different product entirely.

Standard deliverables for watershed work

Classified point cloud

The raw dataset, delivered in ASPRS LAS or LAZ format. Every point carries XYZ, intensity, return number, and a classification tag (ground, low/medium/high vegetation, buildings, water, noise, etc.) per the USGS Lidar Base Specification classification scheme. For watershed applications, the quality of the ground classification is everything — misclassified vegetation points become phantom ridges and filled depressions that corrupt every downstream hydrologic analysis.

Bare-earth digital elevation model (DEM)

A continuous raster interpolated from ground-classified points. For watershed work, DEM pixel sizes of 0.5–1 m are typical — the choice depends on analysis scale and ground-return density under canopy. This is the single product that drives flow direction, flow accumulation, watershed delineation, stream-network extraction, and rainfall simulation. The USGS 3DEP Vertical Accuracy Error Dictionary defines the formal evaluation framework.

Contour lines

Typically at 0.5 m, 1 m, or 2 m intervals depending on terrain relief and analysis scale. Contours are the visual reference for terrain interpretation and feed directly into structure layout for terraces and contour bunds.

Slope and aspect rasters

Both are direct derivatives of the DEM. Slope drives erosion-risk assessment, structure placement, and land-capability classification. Aspect drives microclimate analyses (snowmelt timing, evapotranspiration variation). For TR-55 curve-number selection, slope and land cover together are the primary inputs.

Hydrologic raster products

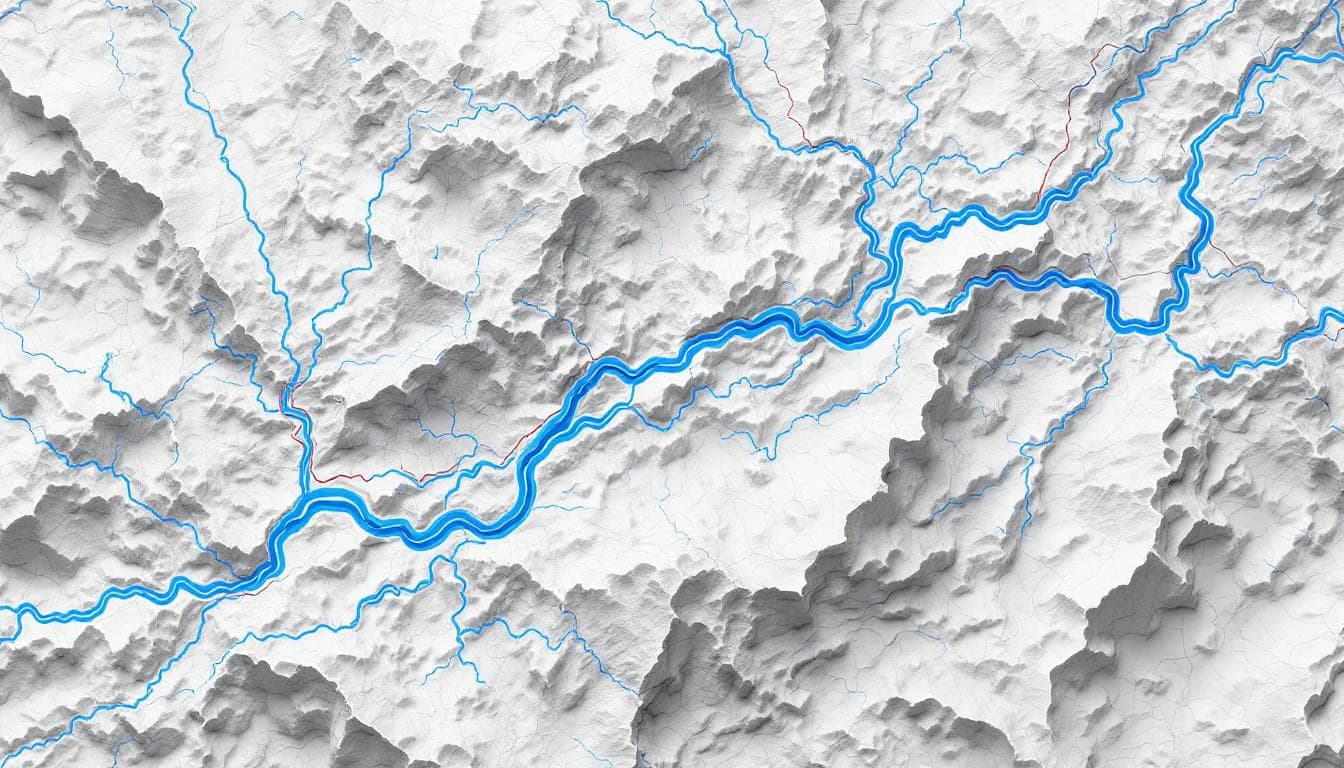

Flow direction and flow accumulation rasters — derived from the bare-earth DEM using standard GIS hydrology toolboxes — generate the stream network and watershed boundaries that feed every subsequent model.

Standard methodologies that this data feeds

NRCS Curve Number method (TR-55)

For small urban and rural watersheds, runoff is typically estimated using the SCS / NRCS Curve Number method as documented in Technical Release 55 (TR-55). The method maps hydrologic soil group, land use, and treatment to a runoff curve number, then computes runoff depth and peak discharge from rainfall.

Hydrologic soil groups (A through D) come from the NRCS Soil Survey, which is available nationwide through the Web Soil Survey portal. Land cover and impervious area come from your DEM-derived analysis combined with current orthoimagery.

Hydrologic and hydraulic modeling

For event-based watershed simulation, the standard tool is HEC-HMS — the U.S. Army Corps of Engineers' Hydrologic Modeling System. HEC-HMS is widely used to support floodplain regulation and is the de facto standard for one-percent flow estimates that feed FEMA studies.

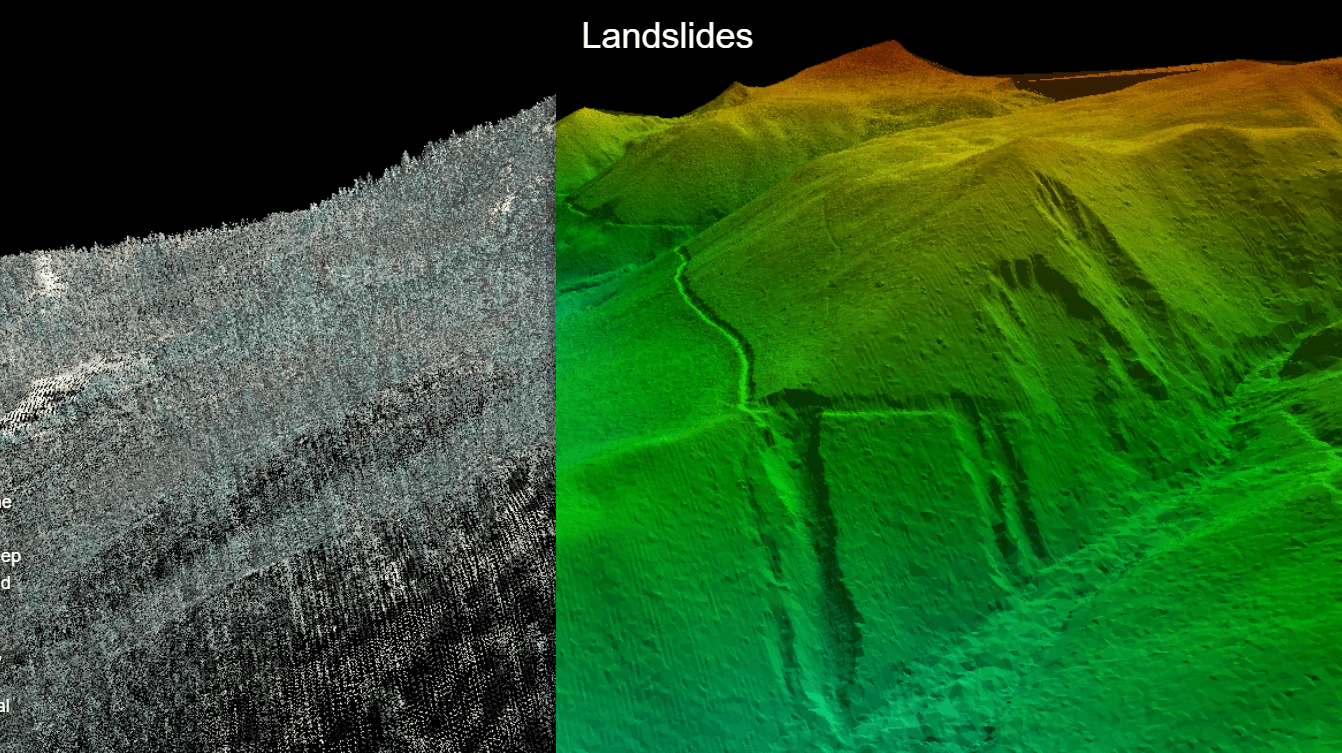

USGS LiDAR point cloud versus bare-earth DEM revealing landslide features hidden under forest canopy — LiDAR point cloud (left) versus processed bare-earth DEM (right) — vegetation removal reveals terrain features invisible from above. — Image: U.S. Geological Survey, 3D Elevation Program (public domain)

For hydraulic routing through channels and floodplains, HEC-RAS (River Analysis System) — also from USACE's Hydrologic Engineering Center — is the standard. Both tools are free and well-documented.

Design-storm precipitation

Design-storm depths and intensities come from NOAA Atlas 14 — the Precipitation Frequency Data Server maintained by NOAA's Office of Water Prediction. Atlas 14 provides return-period precipitation estimates (2-year, 10-year, 25-year, 100-year, etc.) at any point in the U.S., at durations from 5 minutes to 60 days. Atlas 14 values typically replace the older HYDRO-35 and TP-40 estimates that legacy designs were sized against.

Accuracy expectations

Drone LiDAR for watershed work is held to the ASPRS Positional Accuracy Standards for Digital Geospatial Data (Edition 2, Version 2, June 2024). Practical numbers we observe in production:

Vertical RMSEz of 2–5 cm on bare earth in open terrain — meeting or exceeding the 2 cm and 5 cm accuracy classes of ASPRS Edition 2.
Vertical RMSEz of 5–15 cm under moderate-to-heavy vegetation, with the specific value driven by ground-return density and canopy structure. ASPRS treats this as Vegetated Vertical Accuracy (VVA), which Edition 2 reports but no longer fails projects on.
Horizontal accuracy of 1–3 cm with RTK/PPK GNSS, tied to NGS-published control or the NOAA CORS network.
Point density of 100–400 pts/m² for typical project flight plans — 50× to 200× the QL2 baseline.

Compare this to QL2 3DEP: 10 cm RMSEz, 2 pts/m². Drone LiDAR is a different order of resolution and accuracy class. The trade-off is geographic extent: 3DEP is national and free, while project-specific drone work is sized to the watershed of interest and priced accordingly.

Where this fits in the regulatory landscape

For watershed and stormwater work in incorporated jurisdictions, the binding federal regulation is the EPA's NPDES Municipal Separate Storm Sewer System (MS4) program. The Phase II Rule (1999) regulates small MS4s in urban areas with population ≥ 50,000. Regulated MS4s must develop, implement, and enforce a Stormwater Management Program (SWMP) — current high-resolution terrain data materially strengthens the design and reporting elements.

For watersheds tied to FEMA floodplain studies, FEMA has standardized on USGS 3DEP QL2 LiDAR as the minimum acceptable input for new mapping. Project-specific drone LiDAR at higher quality levels supports LOMR/CLOMR submittals and detailed local studies.

For DOT-adjacent drainage work, FHWA's hydraulics and hydrology resources reference HEC-RAS and HEC-HMS as standard tools. The deliverable expectations are similar.

Picking the right tool for the question

A practical decision tree for watershed-scale work:

Use existing 3DEP data when

Coverage exists at QL2 in the watershed and is recent enough that significant grading or channel change is unlikely.
The hydrologic question doesn't depend on micro-topography (small swales, terraces, sub-meter grade breaks).
Budget is tight and accuracy at the 10 cm RMSEz level is sufficient.

Specify project-specific drone LiDAR when

The watershed has been modified since the last 3DEP collection (grading, channel work, new development).
The model is sensitive to sub-decimeter features — for example, distinguishing 15 cm grade breaks in a flat retention basin.
You need point density above QL2's 2 pts/m² for canopy penetration in heavily vegetated terrain, or for fine-scale roughness in channels.
The project is regulatory-critical and reproducibility against an ASPRS-compliant accuracy report is required.

What a defensible deliverable set includes

If you're contracting for a watershed project, ask for these explicitly in the SOW:

Classified point cloud in LAS/LAZ, classified per the USGS Lidar Base Specification scheme (ground, vegetation tiers, buildings, water, noise).
Hydro-flattened bare-earth DEM at the resolution appropriate to your analysis scale (typically 0.5–1 m).

LiDAR point cloud visualization showing terrain with vegetation — A classified LiDAR point cloud — ground points (brown) are separated from vegetation (green) to reveal the bare-earth surface beneath canopy.

Contour lines at user-specified intervals, in DXF and/or Shapefile.
Slope and aspect rasters derived from the DEM, ready for ingest into TR-55 curve-number selection workflows.
Hydrologic raster products: flow direction, flow accumulation, watershed boundary delineation.
A formal accuracy report against ASPRS Edition 2, with NVA and VVA values, the survey-grade checkpoints used, and the resulting accuracy class — minimum 30 checkpoints per the current standard.

Cost framing

Drone LiDAR for watershed work in Southern California typically scales by area, vegetation density, and ground-control requirements. For most projects, comparing the cost of a one-time acquisition to the cost of one redesign cycle on a downstream structure (or one FEMA submittal rework) gives the practical math. We publish general pricing in our 2026 cost guide.

Where eligible, FEMA's BRIC program and Hazard Mitigation Grant Program can fund data collection as part of hazard mitigation planning. California also has dedicated watershed and stormwater grant programs through the State Water Resources Control Board.
