What a drone LiDAR survey of a landslide looks like

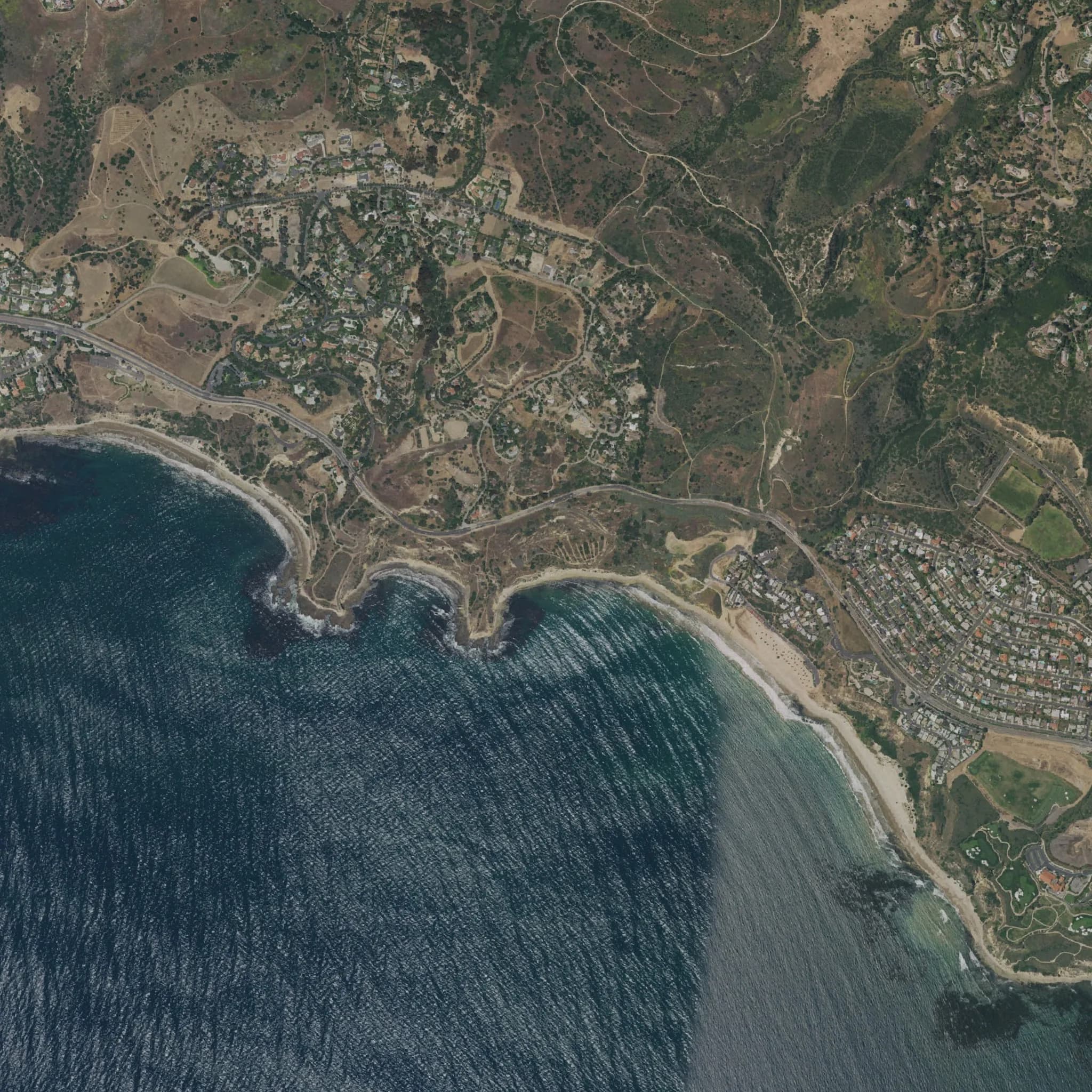

A simulated flight over the Portuguese Bend landslide, from the hills down to the coast. The terrain around it is real, and the points that fill in are the 2023 USGS lidar of the slide.
Interactive 3D · about 10 MB download
Simulation. The flight path is generated for this page and the drone is a generic model shown larger than life. The points are a published airborne lidar survey by the U.S. Geological Survey, replayed along the simulated path; they are not Twinn Digital project data. Sources
What you're watching
How a drone LiDAR survey is flown
Each survey is a full 3D surface of the slope. Compared with the last one, it shows where the ground dropped, bulged or moved downhill, and how far, before the cracks reach a road or a house.
The flight is planned by software
Our AI agents lay the flight lines over a terrain model of the site, set the height above ground and the spacing between lines, and check the airspace. A licensed Part 107 remote pilot reviews the plan and is in command for the whole flight.
The drone follows the terrain
The aircraft holds a set height above the ground, climbing over ridges and dropping into low ground, so the laser footprint and point density stay even across the site.
Lines overlap side to side
Each pass sweeps a swath of ground with the laser. The next line overlaps it, so slopes facing away from one pass are seen from the other and gaps fill in.
The point cloud builds as it flies
Hundreds of thousands of laser pulses per second each return a 3D point. Back at the office the passes are aligned, checked against ground control and turned into the surfaces and numbers you file.
